Name: Parcels

Display Field: SUBNAME

Type: Feature Layer

Geometry Type: esriGeometryPolygon

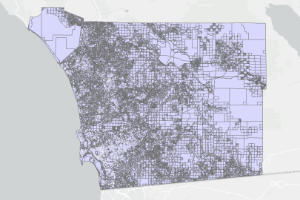

Description: LA MESA PARCELS (INTERNAL) Parcels within one mile of the City of La Mesa, clipped from SanGIS PARCELS_ALL using PW_GIS.clip_square. Approximately 46,500 features. Replaces the legacy parcel_square feature class. INTERNAL USE ONLY This layer carries nine owner-related fields (OWN_NAME1-3, OWN_ADDR1-4, OWN_ZIP, OWNEROCC). Under AB 1785 these must not be exposed publicly. Do not add this layer to a public application, Hub page, or open data site. The public parcel service, which carries no owner data, is the correct layer for public use. REFRESHED MONTHLY Rebuilt each month from the SanGIS download, replacing all features. The schema is inherited from SanGIS rather than mapped, so no field matching is required and no attributes are silently dropped. VALUES ARE NORMALIZED SanGIS delivers owner names and address fields in all capitals. This layer applies proper casing on load, so it intentionally differs from the SanGIS source. Casing handles directionals (N, S, E, W), street types, ordinals (4th), Mc and Mac names, apostrophes, hyphenated surnames, and business suffixes (LLC, Inc, Corp). OWNERSHIP CODES EXTRACTED SanGIS embeds Change in Ownership processing codes inside owner names, in angle brackets, for example SMITH JOHN followed by a bracketed DD. These are removed from the name and stored in OWN_CODE so they do not appear in correspondence or mailings. DD - transfer on death deed. LF - leased from. LE - life estate. DV - Department of Veterans Affairs. PF - purchase contract. DERIVED NUMERIC FIELDS SanGIS delivers bedroom, bath and stall counts as three-character strings with leading zeros, with an implied decimal in BATHS. Clean numeric versions are provided and should be used for sorting, filtering and analysis. The raw strings are retained for fidelity but hidden by default. BEDROOMS_N (short) from BEDROOMS, where 004 means 4. BATHS_N (float) from BATHS, where 025 means 2.5. GARAGE_STALLS_N (short) from GARAGE_STALLS. CARPORT_STALLS_N (short) from CARPORT_STALLS. CODED VALUES Geodatabase domains are attached to DOCTYPE, TAXSTAT, SUB_TYPE, FRACTINT, NUCLEUS_ZONE_CD, GARAGE_CONVERSION, POOL and OWNEROCC, so codes display as descriptions throughout. FIELDS EXCLUDED FROM SANGIS Each excluded on SanGIS's own documented grounds. X_COORD and Y_COORD are centroid coordinates, redundant with the geometry. SITUS_BUILDING is documented by SanGIS as a blank field. YEAR_EFFECTIVE is not Y2K compliant and SanGIS states it must not be used to determine property age. ASR_ZONE and ASR_LANDUSE are legacy, irregularly maintained, and superseded by NUCLEUS_ZONE_CD and NUCLEUS_USE_CD. MULTI is an Assessor mapping-division labeling flag. PAR_VIEW is an appraisal input only. REGISTERED UNVERSIONED Nothing edits this layer by hand; it is a monthly mirror of SanGIS. The monthly refresh truncates and reloads. SOURCE SanGIS PARCELS_ALL, downloaded 2026-09-29. Built 2026-09-30 by City of La Mesa GIS Admin.

Copyright Text: SanGIS, using legal recorded data provided by the San Diego County Recorder and Assessor's Office. Derived and maintained by the City of La Mesa GIS Admin.

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 7000.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: true

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 6310494.452049971
YMin: 1846943.9980256408
XMax: 6341435.00007689
YMax: 1879978.932939887
Spatial Reference: 102646  (2230)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSFSSolid
Color: [0, 0, 0, 0]
Outline:
Style: esriSLSSolid
Color: [115, 0, 0, 255]
Width: 0
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:
Label Placement: esriServerPolygonPlacementAlwaysHorizontal
Label Expression: N/A
Use Coded Values: true
Symbol:
Color: [255, 255, 255, 242]
Background Color: N/A
Outline Color: N/A
Vertical Alignment: bottom
Horizontal Alignment: left
Right to Left: false
Angle: 0
XOffset: 0
YOffset: 0
Size: 6
Font Family: Verdana
Font Style: normal
Font Weight: bold
Font Decoration: none

Min. Scale: 1000.0
Max. Scale: 0.0

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: true

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• APN ( type: esriFieldTypeString, alias: APN, length: 10 )
• APN_8 ( type: esriFieldTypeString, alias: APN (8-Digit), length: 8 )
• PARCELID ( type: esriFieldTypeInteger, alias: Parcel Polygon ID (not unique) )
• SUB_TYPE ( type: esriFieldTypeSmallInteger, alias: Parcel Type , Coded Values: [1: Regular parcel with APN] , [2: Unparcelled private road] , [3: Unparcelled government land] , ...5 more... )
• FRACTINT ( type: esriFieldTypeSmallInteger, alias: Fractional Interest , Coded Values: [1: Single interest] , [2: Multiple interests, equal shares] , [3: Multiple interests, unequal shares] , ...2 more... )
• LEGLDESC ( type: esriFieldTypeString, alias: Legal Description, length: 65 )
• SUBMAP ( type: esriFieldTypeString, alias: Subdivision Map Number, length: 11 )
• SUBNAME ( type: esriFieldTypeString, alias: Subdivision Name, length: 64 )
• ACREAGE ( type: esriFieldTypeDouble, alias: Taxable Acreage (0.5 ac and up) )
• SITUS_ADDRESS ( type: esriFieldTypeInteger, alias: Situs House Number )
• SITUS_FRACTION ( type: esriFieldTypeString, alias: Situs Fraction, length: 3 )
• SITUS_PRE_DIR ( type: esriFieldTypeString, alias: Situs Prefix Direction, length: 2 )
• SITUS_STREET ( type: esriFieldTypeString, alias: Situs Street, length: 30 )
• SITUS_SUFFIX ( type: esriFieldTypeString, alias: Situs Street Type, length: 4 )
• SITUS_POST_DIR ( type: esriFieldTypeString, alias: Situs Suffix Direction, length: 2 )
• SITUS_SUITE ( type: esriFieldTypeString, alias: Situs Unit, length: 6 )
• SITUS_COMMUNITY ( type: esriFieldTypeString, alias: Situs Community, length: 28 )
• SITUS_ZIP ( type: esriFieldTypeString, alias: Situs ZIP, length: 10 )
• SITUS_JURIS ( type: esriFieldTypeString, alias: Situs Jurisdiction, length: 2 )
• OVERLAY_JURIS ( type: esriFieldTypeString, alias: Overlay Jurisdiction, length: 2 )
• NUCLEUS_SITUS_FROM_NBR ( type: esriFieldTypeInteger, alias: Address Range Start )
• NUCLEUS_SITUS_THRU_NBR ( type: esriFieldTypeInteger, alias: Address Range End )
• NUCLEUS_SITUS_THRU_FRACTN ( type: esriFieldTypeString, alias: Address Range End Fraction, length: 3 )
• OWN_NAME1 ( type: esriFieldTypeString, alias: Owner Name 1, length: 96 )
• OWN_NAME2 ( type: esriFieldTypeString, alias: Owner Name 2, length: 50 )
• OWN_NAME3 ( type: esriFieldTypeString, alias: Owner Name 3, length: 50 )
• OWN_CODE ( type: esriFieldTypeString, alias: Ownership Code (Assessor), length: 20 )
• OWN_ADDR1 ( type: esriFieldTypeString, alias: Owner Mailing 1, length: 75 )
• OWN_ADDR2 ( type: esriFieldTypeString, alias: Owner Mailing 2, length: 50 )
• OWN_ADDR3 ( type: esriFieldTypeString, alias: Owner Mailing 3, length: 50 )
• OWN_ADDR4 ( type: esriFieldTypeString, alias: Owner Mailing 4, length: 50 )
• OWN_ZIP ( type: esriFieldTypeString, alias: Owner ZIP, length: 9 )
• OWNEROCC ( type: esriFieldTypeString, alias: Owner Occupied, length: 1 , Coded Values: [Y: Yes] , [N: No] )
• ASR_TOTAL ( type: esriFieldTypeInteger, alias: Total Assessed Value )
• ASR_LAND ( type: esriFieldTypeInteger, alias: Assessed Land Value )
• ASR_IMPR ( type: esriFieldTypeInteger, alias: Assessed Improvement Value )
• TAXSTAT ( type: esriFieldTypeString, alias: Tax Status, length: 1 , Coded Values: [T: Taxable] , [N: Nontaxable] )
• TRANUM ( type: esriFieldTypeString, alias: Tax Rate Area (TRA), length: 5 )
• DOCDATE ( type: esriFieldTypeString, alias: Document Date (MMDDYY), length: 8 )
• DOCNMBR ( type: esriFieldTypeString, alias: Document Number, length: 6 )
• DOCTYPE ( type: esriFieldTypeString, alias: Document Type, length: 1 , Coded Values: [0: Unresearched] , [1: Grant deed] , [2: Quit claim] , ...6 more... )
• NUCLEUS_USE_CD ( type: esriFieldTypeString, alias: Land Use Code, length: 3 )
• NUCLEUS_ZONE_CD ( type: esriFieldTypeString, alias: Zone Code, length: 2 , Coded Values: [00: Unzoned / Other] , [10: Single Family Residential (R-1)] , [11: Restricted Single Family Residential] , ...11 more... )
• TOTAL_LVG_AREA ( type: esriFieldTypeInteger, alias: Living Area (Sq Ft) )
• BEDROOMS_N ( type: esriFieldTypeSmallInteger, alias: Bedrooms )
• BATHS_N ( type: esriFieldTypeDouble, alias: Bathrooms )
• UNITQTY ( type: esriFieldTypeSmallInteger, alias: Dwelling Units )
• ADDITION_AREA ( type: esriFieldTypeInteger, alias: Addition Area (Sq Ft) )
• GARAGE_CONVERSION ( type: esriFieldTypeString, alias: Garage Converted, length: 1 , Coded Values: [Y: Yes] , [N: No] )
• GARAGE_STALLS_N ( type: esriFieldTypeSmallInteger, alias: Garage Stalls )
• CARPORT_STALLS_N ( type: esriFieldTypeSmallInteger, alias: Carport Stalls )
• POOL ( type: esriFieldTypeString, alias: Pool, length: 1 , Coded Values: [Y: Yes] , [N: No] )
• QUAL_CLASS_SHAPE ( type: esriFieldTypeString, alias: Quality / Class Code, length: 5 )
• USABLE_SQ_FEET ( type: esriFieldTypeString, alias: Usable Pad Area (Sq Ft), length: 5 )
• BEDROOMS ( type: esriFieldTypeString, alias: Bedrooms (SanGIS raw), length: 3 )
• BATHS ( type: esriFieldTypeString, alias: Baths (SanGIS raw), length: 3 )
• GARAGE_STALLS ( type: esriFieldTypeString, alias: Garage Stalls (SanGIS raw), length: 3 )
• CARPORT_STALLS ( type: esriFieldTypeString, alias: Carport Stalls (SanGIS raw), length: 3 )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• Shape.STArea() ( type: esriFieldTypeDouble, alias: Shape.STArea() )
• Shape.STLength() ( type: esriFieldTypeDouble, alias: Shape.STLength() )

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
